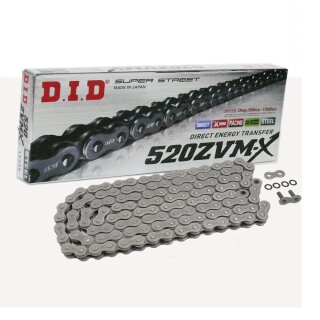

DID X Ring Chain 520ZVM-X with 110 Links open with Rivet Connecting Link

SKU: 18204-0110
GTIN: 4250885666778
HAN: 18204-0110
Category: DID Chain 520 ZVM-X

DID 520ZVM-X open X Ring Chain with Rivet Connecting Link and 110 Links, good for Street Motorcycles up to 1200cc, tensile strength 3967 kg.

138,80 €

incl. 19% VAT , plus

Manufacturers recommended retail price: 208,20 €

(Save 33.33%, i.e. 69,40 €)

Available immediately

DID X Ring Chain 520ZVM-X open with 110 Links and Rivet Connecting-Link

good for Street Motorcycles up to 1200cc
tensile strength 3967kg
Internal plate thickness 2,2 mm and external plate thickness 2,2 mm
Bolt length 21,10 mm
Rollers Diameter 10,22 mm
Weight per roll 16,30 g
Weight of the Chain 1.793 g
additional rivet connecting-link under following article no .: 18204-0002

What makes an D.I.D chain so special? It is the tradition, the know-how and the experience.
For over 50 years, DID DAIDO KOGYO CO. LTD manufactures chains for motorcycles.
Many manufacturers rely on D.I.D tracks for their original equipment.
The individual service and maintenance is essential for the life of the chain.
For details on the chain tension please refer to your driver's manual.
Chain lubrication should be applied to all 500 - 2.500 kilometers, which is ultimately pending
from the chain spray and the weather condition.
We recommend Chain Spray from PDL / Profi Dry Lube or the S100 products from Dr. Wack.

PDF

Montagehinweis Ketten und Kettensätze

Montagehinweis Ketten und Kettensätze

Images

Montagehinweis Ketten und Kettensätze

Item information	Value
construction year:	2014 1990 2005 2000 1989 2004 1999 2015 1988 2003 1998 2013 1987 2002 1997 2012 1986 1996 2011 1985 1983 1995 2010 1984 1982 1994 2009 1981 1993 2008 1980 1992 2007 1979 1991 2006 2001
cubic capacity:	630 cc 350 cc 449 cc 500 cc 660 cc 600 cc 450 cc 230 cc 1000 cc 300 cc 250 cc 650 cc 636 cc 125 cc 400 cc
vehicle identification number:	010001-016000 101733-100001-100720 100001-107930 700104-700597 005021-008731 005001-012000 101652-00001-01602 040001-045000 500001-513253 164001-168000 136197-139345 021692-041560 010101-103149-106275 100001-101302 107931-700657-701969 007086-006001-021000 102102-102761 003001-010000 045001-052000 512254-168001-173000 136197-139795 025151-028982 100001-105596-100001-101561 114070-100001-107537 007405-012001-102737-104625 016001-022000 000001-009000 105265-109705 173001-180000 139346-142370 027508-045001-050000 106276-110837 100001-101651 005221-005809 100001-107743 009701-014118 009001-002000 102762-022001-000001-109706-180001-139796-142295 032101-036171 007001-110838-100001-102736 014101-014300 100001-108730 009730-015737 020001-040000 102835-105153 050101-074999 000001-003000 100001-100155 050001-055000 142296-145392 040101-041060 000001-030000 100001-101858 100721-101080 01603-107538-010286-052001-055000 104626-105887 096101-030001-100156-100513 060001-066000 142371-145202 059101-059500 000101-004883 101859-101081-101440 100001-102075 107744-011402-055001-060000 105154-107794 098101-000001-010000 100514-100792 066001-071000 145203-062101-062200 000151-009511 106347-134996 101189-102834 102076-105600 108731-014113-016049 060001-105888-112761-020001-030000 100793-101298 071001-076000 145393-064101-065280 000166-003325 119221-101303-105601-110302 015350-020064 000001-005000 107795-118390-009001-020000 100001-103148 076001-079000 501303-088101-090890 000166-007507 134997-101441-110303-117230 100001-110047 005001-007000 124310-131391 000189-007464 020001-101299-101732 079001-085000 504497-106340-003348-005784 000001-006000 101562-102101 117231-124309 000101-110048-156001-164000 131392-136196 001101-
model:	XT 660 Z Tenere Skorpion 660 Tour ZX-6R C FMX 650 Tuareg 125 Rally DR 350 US-Import, Off-Road Version T4E 500 XT 660 Z Tenere ABS GZ 250 Marauder TT 600 E SM 630 KLX 650 R D DR 350 S Kick-Starter YZ 250 T4R 500 Pegaso 650 ie TT 600 S Venox 250 CRF 230 F TC 449 KLX 650 R A KLX 250 R D T4E 350 Pegaso 650 ie Garda GS 500 F SZR 660 XL 125 V Varadero KX 125 D XJ 600 N XR 650 L Pegaso 650 Strada T4R 350 Pegaso 650 Garda RS 250 GS 500 FU XTZ 660 H Tenere XR 600 R GSX-R 1000 XJ 600 S Diversion Pegaso 650 Factory W12 350 Tundra 650 RG 250 C Gamma GS 500 U XTZ 660 N Tenere GSX 250 E ZXR 400 L KX 125 L Pegaso 650 Trail DR-Z 400 SM KLE 500 A F 650 ST RG 250 FC Gamma GS 500 GSX 250 Spokewheel KX 125 K Pegaso 650 ETX 125 XJR 400 R SMR 450 F 650 RG 250 W Gamma GS 500 EU XR 650 R NX 650 II Dominator RS 125 Extrema/Replica M4 350 Super Motard XJR 400 GS 500 E Classic 125 80km/h Version EN 500 C KLX 300 R A KX 125 M XT 660 R Enduro NX 650 Dominator RM 400 GSX-R 600 TZR 250 XT 660 X Super Motard Mastiff 660 ZX-6RR Ninja Red Rose 125 Custom
type:	T20011 BL1112, BL3112 DM02 E169 GJ21A BK4111 3YF EN500C 2MA BL1112, BL2112, BL3112 DM04 BK3111 4MY ZX600NNA RD12 PH B21111, B22111, B23111, B21114, B22114, B23114 VDB00 AR1511 BK2111 4MD ZX636CCA FQ DK41A B21111, B22111, B23111 VD AR1211 R20012 LX650DDA BK1111 GG SK42B BG1112, BG3112 LX300AADA VD0 R20011 JC49 LX650A GM51B RD06 GB BG1112, BG2112, BG3112 LX300AAA VDE00 R20010 PE04 JC32 GM51A RJ016, RJ018 GA 4V3 2N VDD00 MUZ660E MX JC32A ZX400LLA RJ017, RJ018 B81112 LE500AAA VDB MUZ660 GJ53B ZX400L 4BR, 4LX KX125LLA LE500A A202AB RD08A RW LDA00 4LW RE01 GS25X RJ011, RJ014 PYA00 ZD3T200 B61111, B62111 4HM H812AB RD08B ML LD000, LD002 BK2321 4GV MF000 RJ012, RJ014 KX125MMA SFG00 T20021 BZ1111 H802DB DM018 E169S GJ21B BK4221 4SU RD02 RM400 EN500ACA LX300AAD 4BR
Manufacturer:	BMW Aprilia Kawasaki Husqvarna Cagiva Honda Beta MZ/MuZ Kymco Yamaha Suzuki
kind of product:	Chain
Shipping weight:	2,48 kg
Item weight:	2,30 kg
