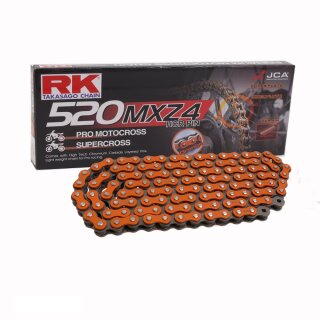

MotoCross Racing Chain in ORANGE RK 520MXZ4 with 112 Links and Clip Connecting Link open
RK 520MXZ4 open MotoCross Racing Chain in ORANGE with Clip Connecting-Link and 112 Links, good for MX and Off-Road Motorsport up to 500cc, tensile strength 3630kg.

Item number: 15230-0112

Category: RK Chain DD520MXZ4 Orange

Shipping weight: 2,18 Kg

Product weight: 2,00 Kg

100,95 €

Final price* , no shipping costs (Paket)

Available now!

Shipping time: 1 - 2 workdays

RK DD520MXZ4 open Moto-Cross Racing Chain in ORANGE with 112 Links and Clip Connecting-Link

  • 520 = 5/8 X 1/4
  • good for MX and Off-Road Motorcycles up to 500cc
  • tensile strength 3630kg
  • Pitch 15,875 mm
  • Internal plate thickness 2,00 mm External plate thickness 2,00 mm
  • Bolt length 17,70 mm
  • Rollers Diameter 10,16 mm
  • Weight per roll 14,00 g
  • Weight chain 1.456 g
  • additional clip connecting-link under following article no .: 15230-0001
  • What makes an RK chain so special? It is the tradition, the know-how and the experience.
    For over 50 years, RK Takasago manufactures chains for motorcycles.
    This is why manufacturers such as HONDA, SUZUKI, YAMAHA, KAWASAKI, KTM, DUCATI, TRIUMPH and MV AGUSTA rely in their original equipment on chains from RK .
    The individual service and maintenance is essential for the life of the chain.
    For details on the chain tension please refer to your driver's manual.
    Chain lubrication should be applied to all 500 - 2.500 kilometers, which is ultimately pending
    from the chain spray and the weather condition.
    We recommend Chain Spray from PDL / Profi Dry Lube or the S100 products from Dr. Wack.

    Never replace a component from the chain set (chain, front sprocket and rear sprocket),
    if the wear has already been started. The involuntary chain elongation and the sprocket wear usually run parallel with identical qualities. The sprocket valleys
    are broadened wider, the teeth become more pointed with increasing duration of use.
    We recommend sprockets among others of JT-Jomthai, Maxum-Tech and Supersprox.

  • vehicle identification number: 000001-011000000001-049999000101-000175-000176-000211-000239-000240-000284-000344-000348-000415-000542-001161-001441001464-011529001740-004386-008691-011001-026000011530-014791-026001-030138-050001-050001-050151050001-050400050152-050401-0508200508721-050876050877-051000-051061051062-051465100001-100087100001-101152100001-101326100001-101390100001-103866100088-100241100101-100242-101153-101327-102359101391-101662101663-101675101676-102360-103442103443-103867-105028105029-105863105561-105864-107185107186-108192108193-109110109111-400001-500001-500001-503194503195-506644-
    Manufacturer: KTMCagivaBetaHusqvarnaApriliaHondaKawasakiSuzukiYamaha
    construction year: 198920002007199020012008199119802009199219812010199319822011199419831984201219952002198520131996200319862015199720041987201419982005198819992006
    kind of product: Chain
    cubic capacity: 200 cc400 cc150 cc450 cc500 cc360 cc250 cc310 cc300 cc465 cc125 cc498 cc
    model: YZ 250RR 450 4TKX 250 F 4TKX 500 BSX 125 17Kw SupermotoKX 250 KSMR 450RM 125KX 250 DMX 125TC 250TE 450CR 125SX 125 11Kw SupermotoWR 250CRM 125Canyon 500TE 310SM 450 FSEYZ 125WR 360CRF 150 FYZ 250 F 4-TaktWR 300SM 400 FSEKX 125 CCR 250CR 125 REC 250 4T EnduroTXC 250EC 250 2T EnduroKX 125 ERM-Z 250LC2 125 EnduroTE 250KX 125 KKX 125 FEC 125 XCLC2 125 EDR-Z 400 SKFX 400 KSFKX 125 GEC 125WR/E 125 DualDR-Z 400 SMURM465KX 125 HSXV 450SX 200DR 200 SEKX 125 JRXV 450RR 498DR-Z 400 EKX 500 ACR 250 RYZ 465
    type: VPT00CE15C1LXH400AA3H02ACA300AAC2HGCE16CRM125H300AA3H02ABH802DB2VNBE11114V4H301AA4H00AA4XMBF1111RM465H300AB125LC2CE03CBC1112KX250TTTA5X5CG10CCE05CB81110KX250TTA24YCG14CCE08CB82111H200AA43NCG18CJE01CE09CSH42AA300AAVSR00CG21CRV000CE10CH802BCA300AA9VSU41CG25CTZ000CE13CH512AAA300AAAVPH00CG27CME03RJ41AA202AAA300AAB
